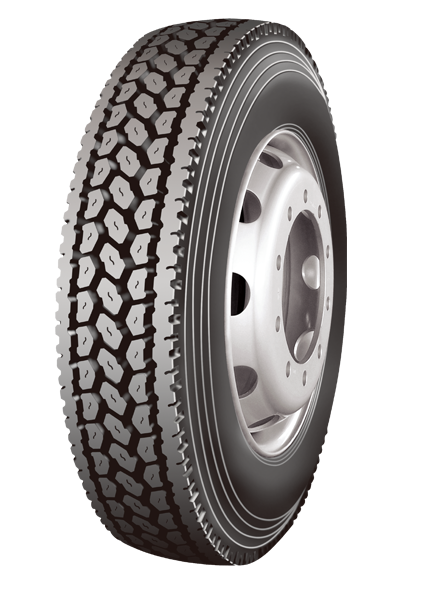

LM/R/SC 516
Excellent comprehensive performance
●Comprehensive performance formula design, can provide good wear resistance performance, low heat generation performance and anti-slip performance
●Four-ply belt structurecan provide excellent high-speed performance and durability
●Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width(mm) | New tire designed size(mm | |||
Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
11R22.5 | 14 | 144/142 | 2800 | 2650 | 720 | 720 | L | 8.25 | 7.5 | 24 | 215 | 279 | 1054 |
11R22.5 | 16 | 148/145 | 3150 | 2900 | 850 | 850 | L | 8.25 | 7.5 | 24 | 215 | 279 | 1054 |
11R24.5 | 14 | 146/143 | 3000 | 2725 | 720 | 720 | M | 8.25 | 7.5 | 24 | 215 | 279 | 1104 |
11R24.5 | 16 | 149/146 | 3250 | 3000 | 830 | 830 | L | 8.25 | 7.5 | 24 | 215 | 279 | 1104 |
285/75R24.5 | 14 | 144/141 | 2800 | 2575 | 760 | 760 | M | 8.25 | 7.5 | 20.5 | 210 | 283 | 1050 |
285/75R24.5 | 16 | 147/144 | 3075 | 2800 | 760 | 760 | L | 8.25 | 7.5 | 20.5 | 210 | 283 | 1050 |
295/75R22.5 | 14 | 144/141 | 2800 | 2575 | 760 | 760 | L | 9 | 8.25 | 20.5 | 210 | 297 | 1014 |
295/75R22.5 | 16 | 146/143 | 3000 | 2725 | 830 | 830 | L | 9 | 8.25 | 20.5 | 210 | 297 | 1014 |
