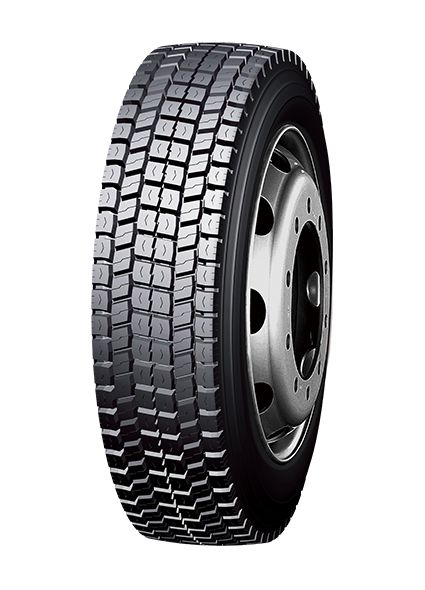

LM/R/SC 329
Unique bead structure design
● Comprehensive performance formula design, can provide excellent wear resistance, low heat generation performance, anti-slip performance
● Unique bead structure design can provide good bead durability
● Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg) | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm） | New tire designed size(mm) | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 275/70R22.5 | 16 | 148/145 | 3150 | 2900 | 900 | 900 | M | 8.25 | 9.00 | 20.5 | 220 | 276 | 958 |
| 295/60R22.5 | 18 | 149/146 | 3250 | 3000 | 900 | 900 | J | 9.00 | 8.25 | 20 | 246 | 292 | 926 |
| 295/60R22.5 | 18 | 150/147 | 3250 | 3000 | 900 | 900 | M | 9.00 | 8.25 | 20 | 246 | 292 | 926 |
| 315/70R22.5 | 18 | 154/150 | 3750 | 3350 | 900 | 900 | J/M | 9.00 | 9.75 | 21.5 | 255 | 312 | 1014 |
| 315/80R22.5 | 20 | 156/150 | 4000 | 3350 | 850 | 850 | K/M | 9.00 | 9.75 | 22 | 230 | 312 | 1076 |
| 295/80R22.5 | 18 | 152/149 | 3550 | 3250 | 900 | 900 | J | 9.00 | 8.25 | 20 | 246 | 298 | 1044 |
| 315/60R22.5 | 18 | 152/148 | 3250 | 3000 | 900 | 900 | J/M | 9.00 | 8.25 | 20 | 251 | 292 | 926 |
| 305/70R19.5 | 18 | 148/145 | 3150 | 2900 | 850 | 850 | K | 9.00 | 19 | 255 | 305 | 923 | |
