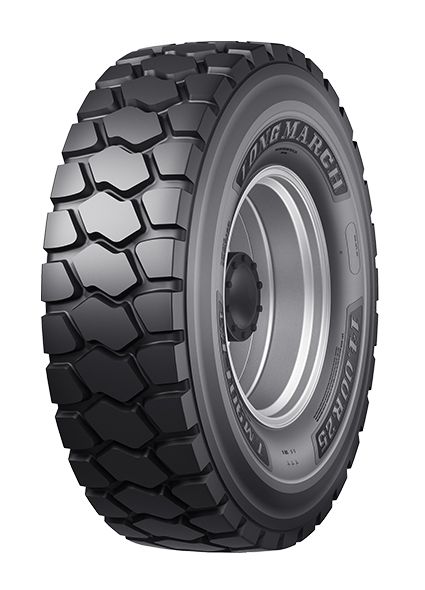

901E4
Excelling in quality and reliability
●Excelling in quality and reliability
●Designed for mining areas
USE FOR MINING
Wheel Positions
Recommended
Allowed
Product Technical Parameters
Tire size | Ply rating | Load index | Load(kg) | Inflation pressure (kpa) | Speed symbol | Measuring rim | Permitted rim | New tread depth(mm) | Tread width(mm) | New tire design dimensions(mm) | |||
| Single Tire | Single Tire | Section width | Overall diameter | ||||||||||
| 16.00R25 | ★★★ | 180 | 8000 | 800 | B | 11.25/2.0 | - | 36.5 | 376 | 430 | 1550 | ||
| 14.00R25 | ★★★ | 169 | 5800 | 700 | B | 10.00/2.0 | 10.00/1.5 | 36.5 | 310 | 375 | 1370 | ||
Unique formula design:
CS: Excellent wear and heat resistance
C1: Excellent cut-and-gouge resistance and superior puncture resistance
Unique structural design:
Reinforced carcass and sidewall design for better load-bearing capacity, reduced deformation, and greater durability.
Unique tread design:
Independent block pattern delivering excellent heat dissipation, traction, grip, and impact resistance.
Deeper tread extends tire service life.
Built for all-wheel positions on engineering vehicles and unpaved mining roads.
