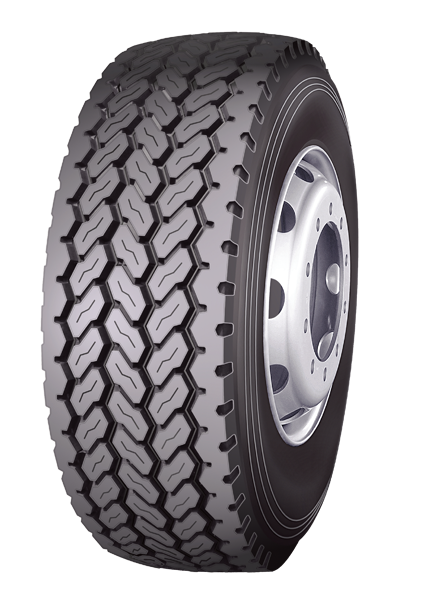

LM/R/SC 526
Wide base pattern
●Comprehensive performance formula design，can provide good wear resistance performance, low heat generation performance and tear resistance
●Wide based tire, used to replace double tires with single tires
●Highway pattern, suitable for highway, general road
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm） | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 385/65R22.5 | 20 | 160(158) | 4500 | 900 | K(L) | 11.75 | 12.25 | 17.5 | 286 | 389 | 1072 | ||
| 385/65R22.5 | 22 | 162 | 4750 | 930 | K | 11.75 | 12.25 | 17.5 | 286 | 389 | 1072 | ||
| 425/65R22.5 | 20 | 165 | 5150 | 825 | J | 13 | 11.75,13.00 | 17.5 | 318 | 430 | 1124 | ||
For fleets and drivers operating across highways, general roads, and off-road terrains, choosing the right tire is crucial for balancing durability, cost-effectiveness, and safety. The Wide Base Pattern On and Off Road Tire is specifically engineered to replace traditional dual tires with a single, wide-based solution, offering excellent performance in both on-road and off-road conditions.
1. Comprehensive Performance Formula
The advanced tread compound is formulated to deliver superior wear resistance, reduced heat generation, and enhanced tear resistance. This ensures longer mileage, reliable stability under heavy loads, and reduced risk of damage when navigating rugged terrains.
2. Wide-Base Design – One Tire Replacing Two
The wide-based construction is designed to replace dual tires, effectively lowering overall vehicle weight, improving fuel efficiency, and maximizing load capacity. This also simplifies tire maintenance while reducing total cost of ownership for fleet operators.
3. Optimized Highway Tread Pattern
The highway-inspired tread design provides excellent grip on highways, general roads, and mixed on/off-road conditions. It enhances braking performance, ensures better handling on wet and dry surfaces, and reduces rolling resistance, which contributes to fuel savings.
Cost Efficiency – Lower fuel consumption and reduced maintenance with single wide tires.
Enhanced Safety – Reliable performance across highways and mixed road surfaces.
Durability – Longer lifespan due to tear resistance and low heat generation.
Versatility – Performs well in both on-road and off-road conditions.
The Wide Base Pattern On and Off Road Tire is ideal for:
Heavy trucks and trailers on long-distance highways.
Logistics and transport vehicles operating on regional roads.
Construction and mining vehicles needing stability on mixed terrain.
By combining advanced material technology, wide-based efficiency, and highway-ready tread patterns, this tire helps businesses reduce operating costs, improve vehicle performance, and ensure driver safety. It is a reliable solution for companies that require both on-road comfort and off-road toughness in one product.
