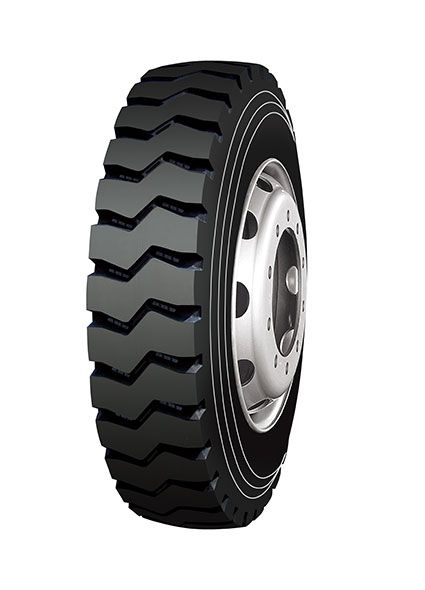

LM/R/SC 308
Harsh pavement formula design
Harsh pavement formula design, can provide excellent puncture resistance, has good wear resistance
Wheel Positions
Recommended
Allowed
Technical
Features

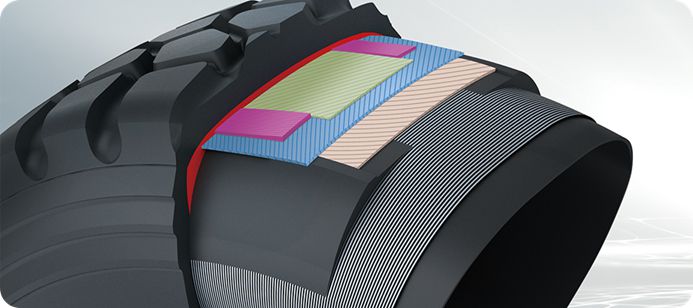

Zero belt design can provide good durability and loading capacity
Technical
Features
Industrial and mining pattern, suitable for non-paved road, speed limited to no more than 40km/h
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg) | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width （mm） | New tire designed size(mm) | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 11.00R20 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | D | 8.0 | 8.5, 8.00V | 25 | 230 | 293 | 1096 |
| 12.00R20 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | D | 8.5 | 8.50V, 9.0 | 25 | 238 | 315 | 1136 |
| 10.00R20 | 18 | 149/146 | 3250 | 3000 | 930 | 930 | D | 7.5 | 7.50V,8.0 | 23.5 | 215 | 278 | 1065 |
| 9.00R20 | 16 | 144/142 | 2800 | 2650 | 900 | 900 | D | 7.0 | 7.00T, 7.5 | 20.5 | 195 | 259 | 1030 |
| 8.25R20 | 14 | 136/134 | 2240 | 2120 | 830 | 830 | D | 6.5 | 6.50T, 7.0, 7.00T | 19 | 176 | 236 | 986 |
| 8.25R16LT | 16 | 128/124 | 1800 | 1600 | 770 | 770 | D | 6.50H | 6.00G, 6.5 | 18 | 176 | 235 | 865 |
| 7.50R16LT | 14 | 122/118 | 1500 | 1320 | 770 | 770 | D | 6.00G | 5.50F, 6.50H | 17 | 164 | 215 | 815 |
| 7.00R16LT | 14 | 118/114 | 1320 | 1180 | 770 | 770 | D | 5.50F | 6.00G | 16 | 152 | 200 | 783 |
