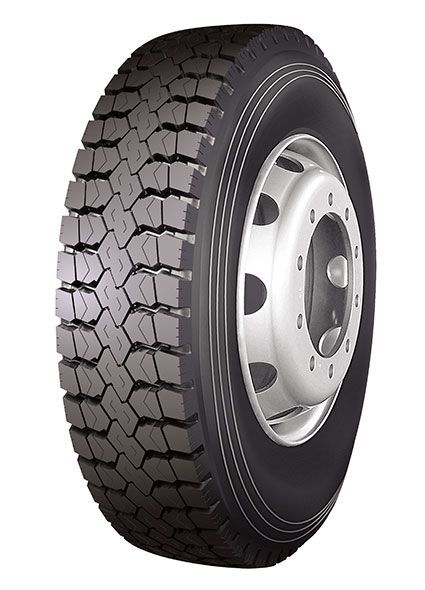

LM/R/SC 302
Unique bead structure design
● Comprehensive performance formula design, can provide excellent wear resistance, low heat generation performance, anti-slip performance
● Four-ply belt structurecan provide high-speed performance, durability; unique bead design can provide good bead durability
● Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm) | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 11R22.5 | 16 | 148/145 | 3150 | 2900 | 850 | 850 | M | 8.25 | 7.5 | 20 | 215 | 279 | 1054 |
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9 | 8.25 | 20.5 | 230 | 300 | 1096 |
| 295/80R22.5 | 18 | 152/149 | 3550 | 3250 | 900 | 900 | M | 9 | 8.25 | 20.5 | 227 | 298 | 1050 |
| 315/80R22.5 | 20 | 156/150 | 4000 | 3350 | 850 | 850 | K | 9 | 9.75 | 20.5 | 230 | 312 | 1086 |
