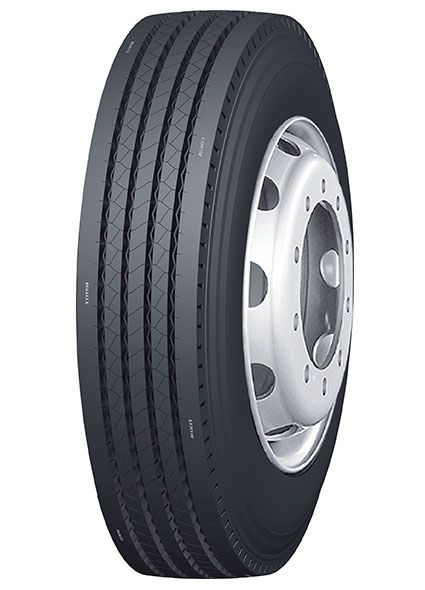

LM/R/SC 237S
Deepen steel sheet design pattern
● High quality materials、unique formula design, can provide high wear resistance
● Optimized structural design, improve tyre grounding area, increase tyre lifetime
● Deepen steel sheet design, effectively reduce the heat of the tire tread underlay
Wheel Positions
Recommended
Allowed
Product Technical Parameters
Tire specification | Load Index | Load(kg) | Air Pressure(KPa) | Speed Level | Measured rims | Allowable rims | Pattern depth(mm) | Driving surface width (mm) | New tire designed size(mm) | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Overall width | Outer diameter | |||||||
| 12R22.5 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9.00 | 8.25 | 14.5 | 226 | 300 | 1085 |
